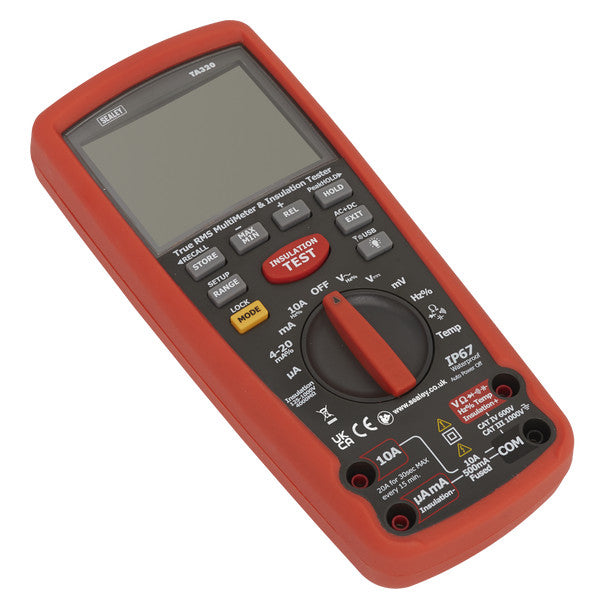

Sealey TA320 Digital Automotive Multimeter/Insulation Tester for Hybrid/Electric

Sealey TA320 Digital Automotive Multimeter/Insulation Tester for Hybrid/Electric

Product details

Specially designed for hybrid vehicles and conforms to EN61010 CAT III (1000V) and CAT IV (600V).

Unlike other multimeters this unit has an insulation test function that allows testing of the insulation of the high voltage cables and motor generator units found on hybrid vehicles.

Can be used as a stand-alone device or linked wirelessly with a USB interface to a PC or laptop enabling results to be graphed, saved or printed.

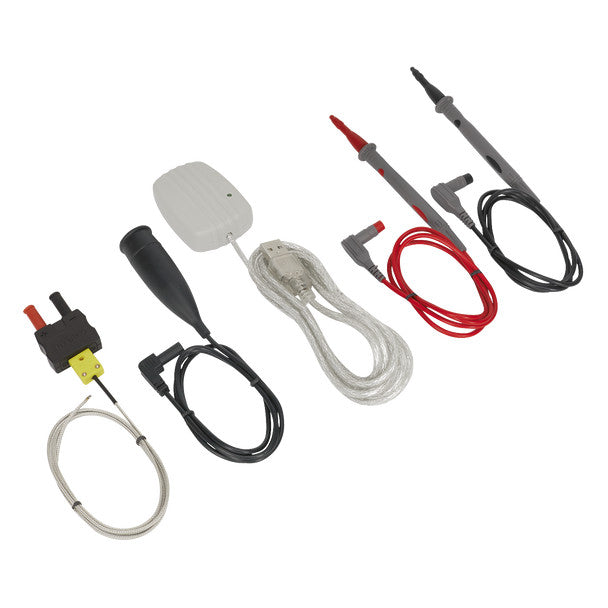

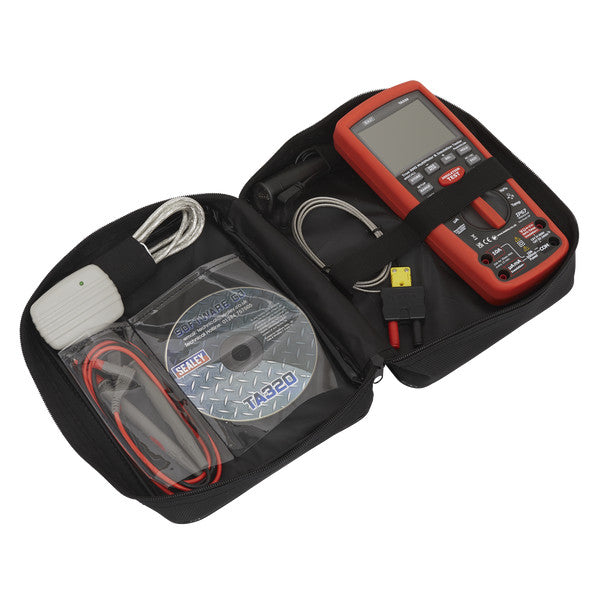

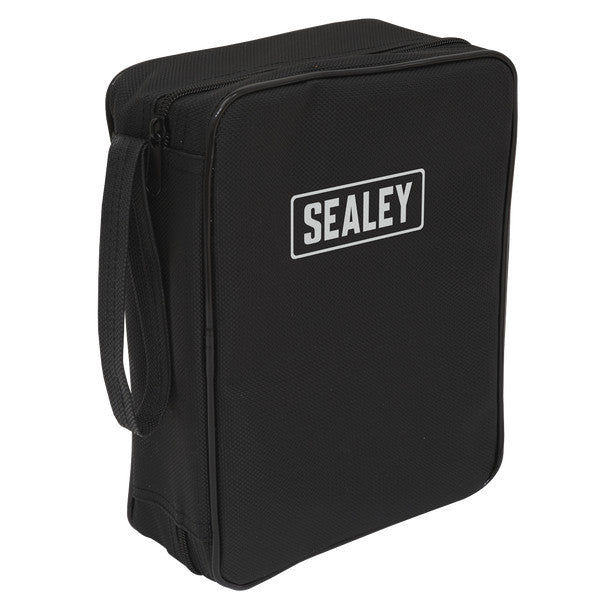

Supplied with high voltage probes, thermocouple soft storage bag and wireless USB cable.

The unit also has the usual functions expected on a high quality multimeter including true RMS (Root-Mean-Square) and IP67 waterproof rating.

Specification

Tach (rpm):No

Dwell:No

AC Voltage:400mV, 4V, 40V, 400V, 1000V

DC Voltage:400mV, 4V, 40V, 400V, 1000V

AC Current:400µA, 4000µA, 40mA, 400mA, 10A

DC Current:400µA, 4000µA, 40mA, 400mA, 10A

Capacitance:40nF, 400nF, 4µF, 40µF, 400µF, 4000µF, 40mF

Frequency:40Hz-10kHz

Duty Cycle:0.1-99.9%

Pulse Width:100µs-100ms

Resistance:400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ

Continuity:<35Ω

Temperature:-50 to +1000°C, -58 to +1832°F

IR Temperature:No

Insulation Test:125V, 250V, 500V, 1000V

Diode Check:Yes

Transistor Test:No

Back Light:Yes

Bar-Graph Display:Yes

Display Hold:Yes

Auto-Ranging:Yes

Inductive Coupler:No

PC Interface:Yes

Digits Height:20mm

Auto Power Off:Yes

Low Battery Indicator:Yes

Batteries (Supplied):6 x 1.5V AA

Hi-Impact Case:Yes

Size (L x W x D):220 x 95 x 56mm

Weight:700g

PC Compatibility:Windows 2000, XP, Vista, Win7

Nett Weight:700g

Barcode:5054511976939

Specifications

• Brand: Sealey
• EAN: 5054511976939
• Manufacturer Part Number: TA320
• Country of Origin: China

Condition & Warranty

This item forms part of our Sealey Factory Refurbished Range.

Grade B – Sealey classifies these items as having light cosmetic damage.

As these are factory-refurbished products, the cosmetic condition may vary between individual items.

Please note: Product images are for illustration and marketing purposes only and may not represent the exact cosmetic condition of the item supplied.

If you would like further information about the condition of an item before purchasing, please contact us. We will be more than happy to provide additional details and photographs wherever possible.

Warranty: All factory-refurbished products are supplied with a 6-month warranty, subject to applicable terms.
