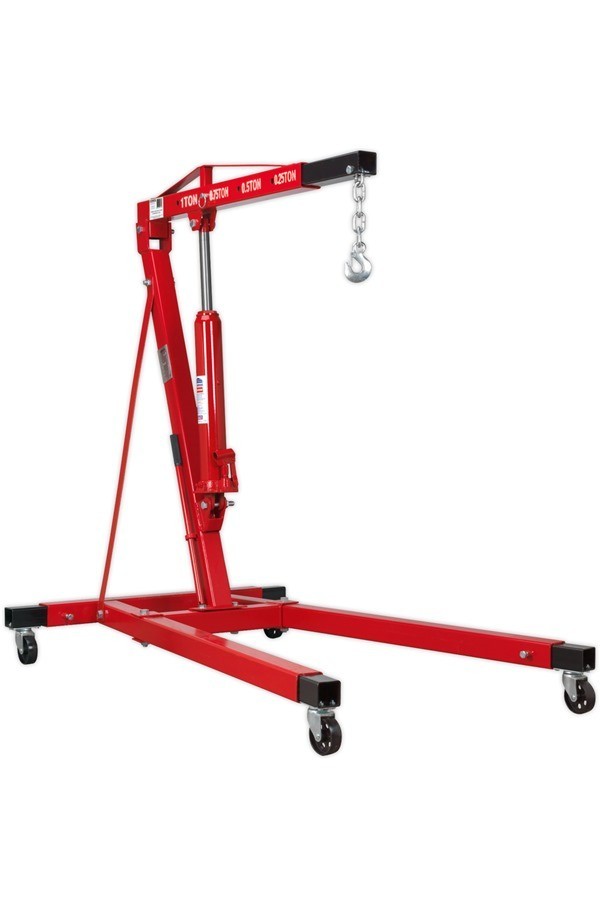

Sealey SC10LR 1tonne Long Reach Engine Crane with Extendable Legs

Sealey SC10LR 1tonne Long Reach Engine Crane with Extendable Legs

Product details

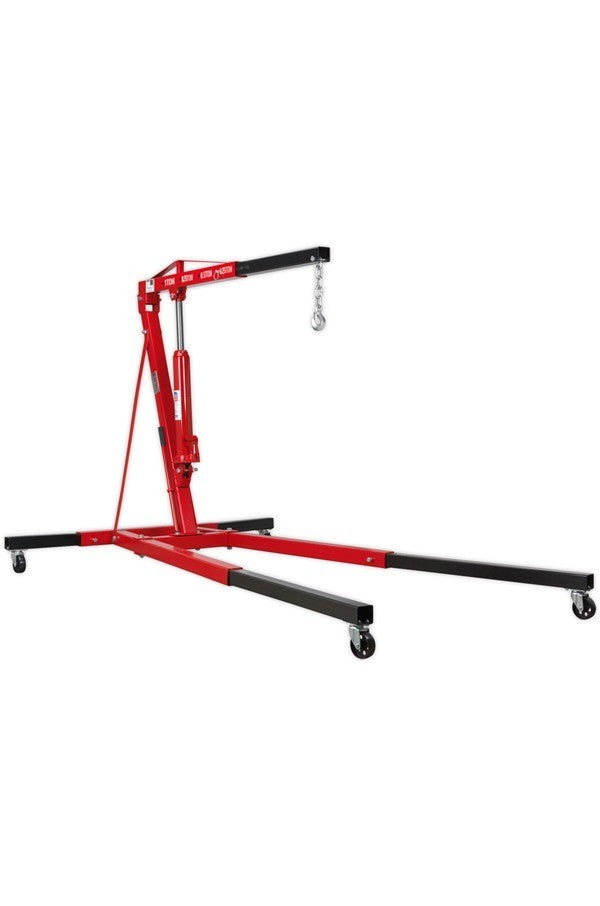

Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1500mm

Side pump access with removable handle

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery

Model: SC10LR

Height jib down: 1460mm

Height legs folded: N/A

Height of frame: 180mm

Length: 1575mm

Rear width: 1000/15000mm

Width front frame: 920/1030mm

Width insert front frame: 660/1010mm

Length of jib position 1: 960mm

Length of jib position 2: 1040mm

Length of jib position 3: 1320mm

Length of jib position 4: 1500mm

Lifting capacity in position 1: 1000kg

Lifting capacity in position 2: 750kg

Lifting capacity in position 3: 500kg

Lifting capacity in position 4: 250kg

Max lifting height at jib position 1: 1850mm

Max lifting height at jib position 2: 1990mm

Max lifting height at jib position 3: 2130mm

Max lifting height at jib position 4: 2270mm

Weight: 105kg

Ex Display Item -May have display related marks. Image Shown For Marketing Purposes Only. Images of the actual item available on request

Specifications

• Brand: Sealey
• Manufacturer Part Number: SC10LR
• Country of Origin: China

Condition & Warranty

This item forms part of our Sealey Factory Refurbished Range.

Grade B – Sealey classifies these items as having light cosmetic damage.

As these are factory-refurbished products, the cosmetic condition may vary between individual items.

Please note: Product images are for illustration and marketing purposes only and may not represent the exact cosmetic condition of the item supplied.

If you would like further information about the condition of an item before purchasing, please contact us. We will be more than happy to provide additional details and photographs wherever possible.

Warranty: All factory-refurbished products are supplied with a 6-month warranty, subject to applicable terms.
