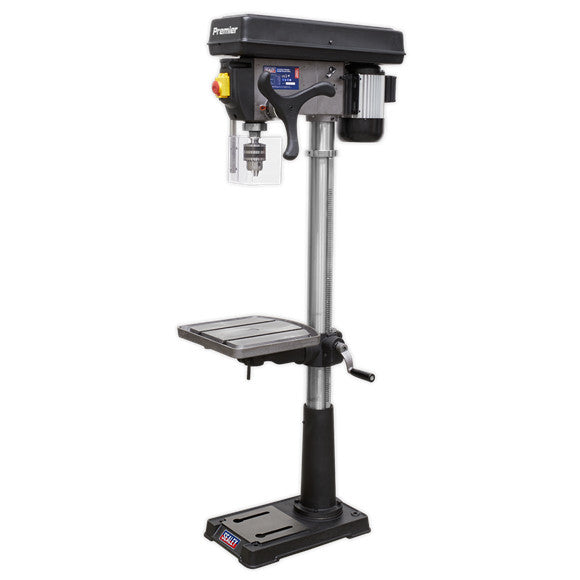

Sealey PDM240F Floor Standing Pillar Drill 16-Speed 750W/230V
Sealey PDM240F Floor Standing Pillar Drill 16-Speed 750W/230V
Sealey PDM240F Floor Standing Pillar Drill 16-Speed 750W/230V
Product details
One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
Features heavy-duty aluminium-bodied motor for long and reliable performance.
No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included).
Supplied with an electrically inter-locked chuck guard.
Large sized square table fitted with precision rack and pinion height adjustment.
20mm(3/4") Capacity chuck, MT3.
Height: 1635mm.
Spindle Centre to Column: 216mm.
Motor Power: 750W.
Column Diameter: Ø80mm.
Spindle Travel: 80mm.
Weight: 73kg.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.Will require assembly.
Base Size:495 x 290mm
Collar Diameter:Ø75mm
Column Diameter:Ø80mm
Drilling Capacity (Chuck Size):20mm
Integral Work Light:Yes
Maximum Distance Spindle to Base:1230mm
Maximum Distance Spindle to Table:720mm
Motor Power (Start):750W(1000W)
Nett Weight:76kg
Number of Speeds:16
Optional Accessories:
PDM/KC - Keyless Pillar Drill Chuck 16mm
Overall Height:1635mm
Speed Range:160-3000rpm
Spindle Centre to Column:216mm
Spindle Nose Taper:MT3
Spindle Travel:80mm
Supply:230V
Swing:512mm
Working Base Surface Size:205 x 200mm
Working Table Surface Size:356 x 356mm
Specifications
- Brand: Sealey
- Manufacturer Part Number: PDM240F
Condition & Warranty
This item forms part of our Sealey Factory Refurbished Range.
Grade B – Sealey classifies these items as having light cosmetic damage.
As these are factory-refurbished products, the cosmetic condition may vary between individual items.
Please note: Product images are for illustration and marketing purposes only and may not represent the exact cosmetic condition of the item supplied.
If you would like further information about the condition of an item before purchasing, please contact us. We will be more than happy to provide additional details and photographs wherever possible.
Warranty: All factory-refurbished products are supplied with a 6-month warranty, subject to applicable terms.
