Product details

Please Note This Item Is For Collection Only

Included

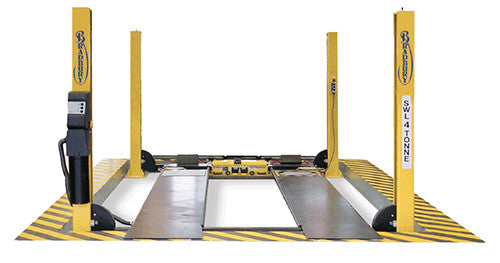

Bradbury H4403ATL XL 4 Post MOT Lift

The Bradbury H4403ATLXL 4.0 Tonne Class IV ATL Electro-Hydraulic Lift (Extra Long) is suitable for one man MOT testing of class IV vehicles. This is the bigger version of the SL model and features longer platforms which measure 4780mm. As standard, the lift features a powerful pneumatically operated play detector which is operated with a robust wireless handset and heavy-duty turntables recessed into the platforms.

Features

Safe & Reliable Hydraulic Operation

Complete with recessed radius plates and air operated play detector

Low profile platform

Anti tilt system

Emergency stop button

Automatic parking system

Eccentric brake system

DVSA Approved for IV Testing

Magnetic wireless handset standard

3 tonne lateral and rotational play detector standard

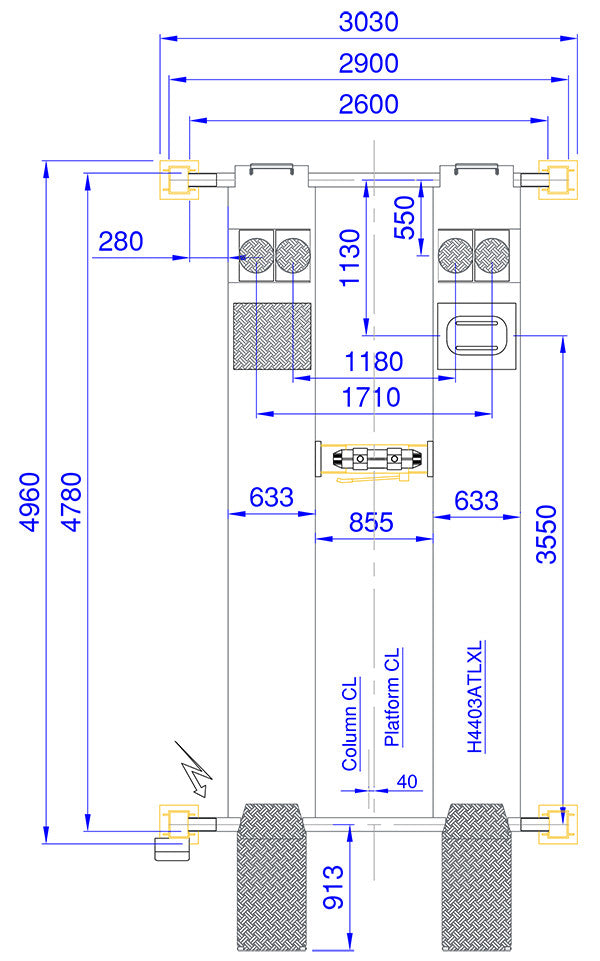

Technical Specification

Maximum Lifting Weight 4000Kg

Lifting Time 24-26 secs

Platform length 4780mm

Overall length 4960mm

Overall width 3030mm

Drive through width 2600mm

Each platform width 630mm

Distance between platforms 855mm

Minimum/maximum lifting height 140/1810mm

Air Supply 8 Bar

Electrical Supply – 3 Phase Motor 380 – 415V, 3kW

Motor Size 3kW

Bradbury 1040S (ATL One Man) Class 4 Brake Tester

Bradbury 1040S roller brake tester is DVSA approved for class 4 testing (ATL) – one man operation using a supplied tablet device.

Tablet with rugged case supplied as standard for operation

50m range

Single bed system easily retrofitted into your existing recess

Can be linked to emission analyser or separate PC/Trolley available

Manual and automatic test procedures

Easy exit traction drive out system (patent pending)

Galvanised sub frames for simplified installation

Galvanised roller cover plated as standard

Made in Germany

Fully galvanised roller beds with unique roller surface

Motorcycle upgrade available

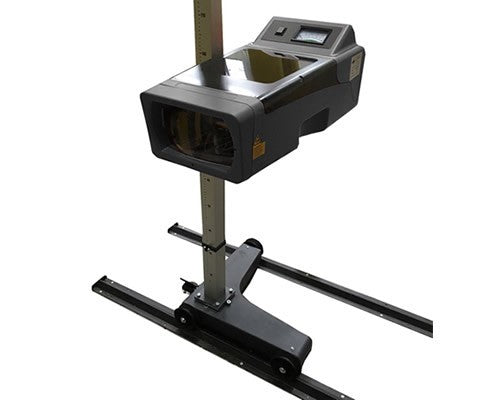

Gemco Litecheck 6DL MOT Headlamp Aligners

GEMCO Litecheck6DL headlamp aligner is fully approved for MOT Testing of class 1,2, 3, 4, 5 & 7 and meets with latest DVSA specifications for MOT headlamp aligners.

Three meters of rails, which are supplied as standard with the headlamp aligner, can be either surface mounted or recessed.

All Fully Functioning and in Very Good Used Condition

All Images Shown For Illustration Purposes Only

Specifications

• Country of Origin: United Kingdom

Condition & Warranty

This item forms part of our Second-Hand / Used Stock.

As this is a previously owned product, it may show signs of use, handling, general wear or cosmetic imperfections consistent with its age and previous use. The extent of any wear or marks may vary between individual items.

Please note: Product images are for illustration and marketing purposes only and may not represent the exact cosmetic condition of the item supplied.

If you would like further information about the condition of an item before purchasing, please contact us. We will be more than happy to provide additional details and photographs wherever possible.

Warranty: This product is supplied with a 6-month warranty, subject to applicable terms.
